Chicken Poultry Farm Equipment for Broiler House in Philippines with Steel Structure House

Chicken Poultry Farm Equipment for Broiler House in Philippines with Steel Structure House

نام تجاری:	LanJing
شماره مدل:	S01
مقدار تولیدی:	100 متر مربع
قیمت:	US$60.00 100-4,999 Square Meters
شرایط پرداخت:	T/T ، L/C
توانایی عرضه:	2 ، 500t/m

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

ویفانگ ， چین

گواهی:

CE,ISO,SGS

ابعاد ساختمان:

با توجه به افزایش نیازهای سفارشی

مادی:

فولاد ، لوله مربع ، پنل ساندویچ PU/EPS ، عایق

نوع:

ساخت و سازهای فولادی مزرعه مرغ خانه های پیش نمایش

سبک درب:

درب های سوزانگ، کشویی یا رولری

رنگ:

به عنوان نیازهای شما

مواد پوشش:

ورق فولادی تک لوله دار، ساندویچ پنل

جزئیات بسته بندی:

در ظرف حمل و نقل بارگذاری شده است

قابلیت ارائه:

2 ، 500t/m

برجسته کردن:

steel structure poultry farm equipment,broiler house equipment Philippines,steel poultry house with warranty

broiler house equipment Philippines

steel poultry house with warranty

توضیحات محصول

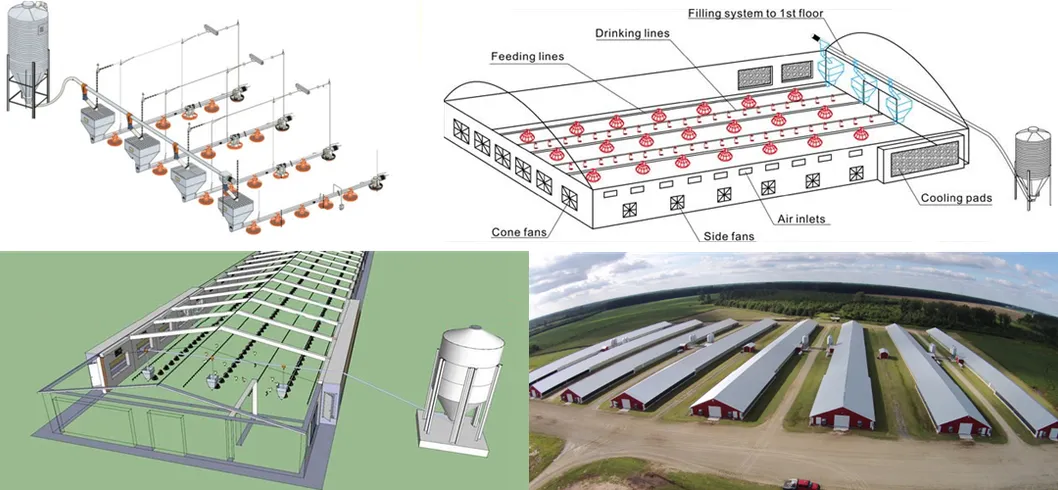

Full set automatic poultry/chicken/breeder/hen/duck farm equipment/machine for broiler

No.1	Main feed line system
No.2	Automatic pan feeding syste
No.3	Automatic nipple drinking system
No.4	Ventilation system
No.5	Cooling pad system
No.6	Environment system
No.7	Foggy system
No.8	Heating system

No.1: Automatic main feed line system
Silo/ manpower hopper is the beginning part of main feed line system. There is a feed sensor at the end of main feed line which controls the motor on and off to achieve automatic feed delivery.

Silo:
Size	3T, 5T, 8T, 10T, 12T, 14T, 15T, 16T, 18T, 20T
Material	hot-dip galvanized steel sheet, with zinc coating amount of 275g/m²
Manpower hopper:
Size	600Kg, 800Kg
Material	hot-dip galvanized sheet
Driving motor:
Power	0.75Kw
Voltage	380V/220V
Frequency	Three-phase/Single-phase
Feed conveying pipe:
Diameter of conveying pipe	75*3.6mm
Material	PVC
Helical spring auger	imported from South Africa
Feeding ability	1400Kg/h
Conveying length	60m
Radius of bending pipe	R1500-2000
Feed level sensor:
Brand	Germany IFM feed level sensor

Chicken Poultry Farm Equipment for Broiler House in Philippines with Steel Structure House 0

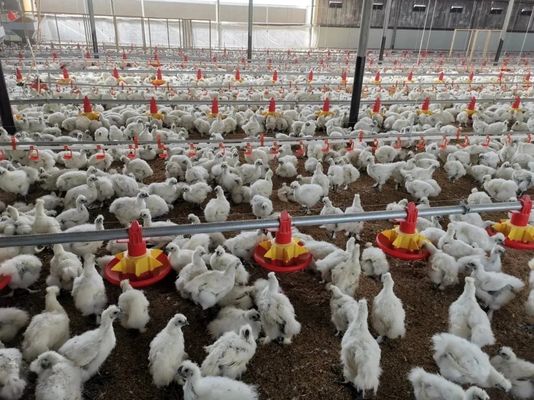

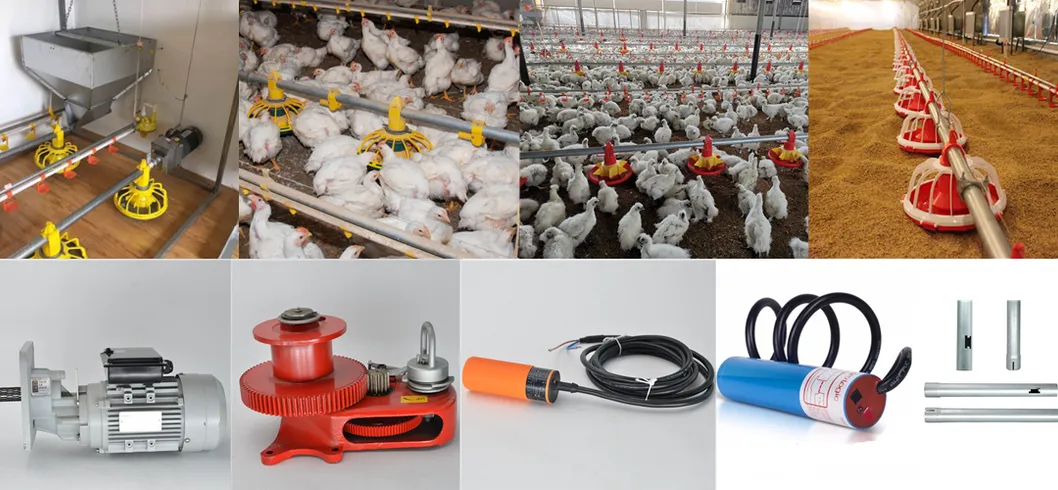

No.2: Automatic pan feeding system
There is a feed sensor at the end of each feeding line which controls motor on and off to achieve automatic feed delivery.

Driving motor:
Brand	Taiwan brand
Power	0.7KW/1.1KW/1.5KW
Voltage	380V/220V
Frequency	Three-phase/single-phase
Vice hopper:
Size	70Kg/90Kg
Material	hot-dip galvanized sheet, thickness: 1mm
Pan feeding lines:
Conveying pipe	Holes: 4 pans/3m, 3 pans/3m Diameter: 45mm Material: galvanized steel pipe, zinc coating amount: 275g/m²,thickness:1.2mm
Feed pan	Material: pure engineering plastic Grille: 14 grilles/16 grilles Weight: 580g/pc Color: Orange, Red, Yellow Raising ability: 50~55 broilers/pc
Spring auger	Imported from South Africa Diameter: 36mm
Feeding ability	400K/h
Feed sensor:
Brand	Germany IFM feed level sensor (time delay range:0-2 hours)
Suspension & lifting system:
The height of feed pan is very important for chicken growing, it's very convenient to adjust the feeding line height by winch. The best height of feeding line: chicken back height and feed pan up grill should be at the same level.
Anti-perching system:
It prevents chicken from staying on the feeding line for too long.

Chicken Poultry Farm Equipment for Broiler House in Philippines with Steel Structure House 1

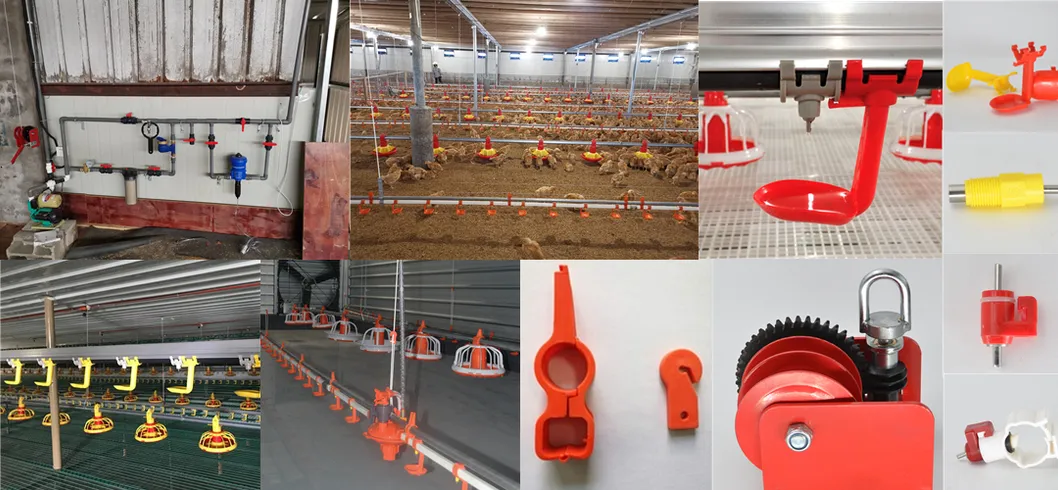

No.3: Automatic nipple drinking system
The system provides fresh water for broiler chicken, which is vital to the healthy growth of birds. Water will flow out from 360 degree when the chickens touch the nipples.

Waterline front system:
Pressure regulator	make sure to supply stable water to drinking line, anti-backlash device can discharge the impurity in pipe
Filter	clean water and avoid blocking nipples
Water meter	measure water usage volume
Doser	add medicine into water source automatically to prevent disease, France Dosatron brand
Nipple drinking lines:
Nipple drinker	Nipple: Material: the inner valve rod is made of stainless steel, the outside shell is made of plastic Valve rod is movable in 360 degree Raising ability: 8~12 broilers/pc Drip cup: Material: pure engineering plastic Color: Orange, Red, Yellow
Water pipe	Holes: 15 nipples/3m, 12 nipples/3m Diameter: 22mm Material: PVC
Galvanized supporting tube	Diameter: 25mm Material: hot-dip galvanized steel pipe
Pressure regulator:
-Double barreled with large flow capacity; -Good regulating stability and high switching performance; -Recoil cleaning with good cleaning result, save time and water;

Chicken Poultry Farm Equipment for Broiler House in Philippines with Steel Structure House 2

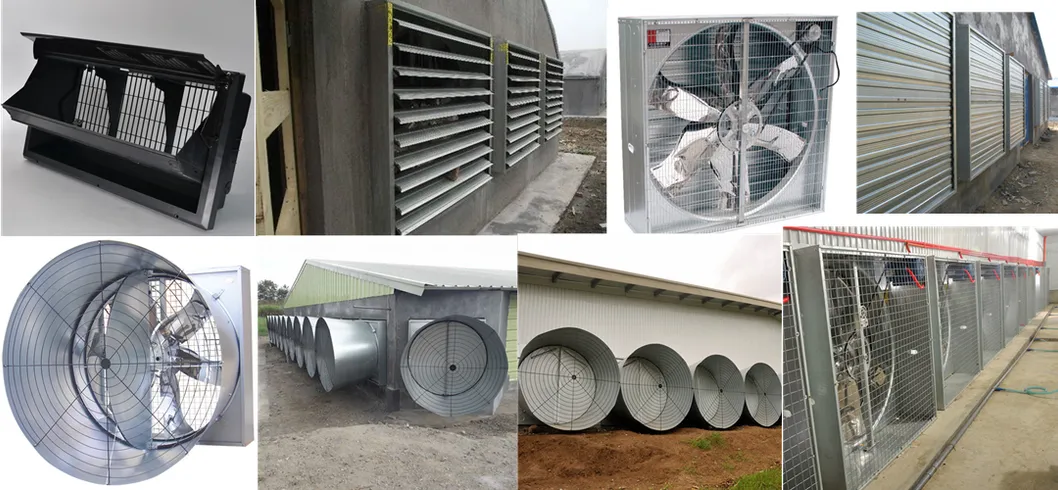

No.4: Ventilation system
The exhaust fan-cooling pad way is the most economical and effective way to reduce temperature of chicken house.
Exhaust fans:
Centrifugal push-pull type exhaust fans ,swung drop hammer exhaust fans, cone fans, butterfly cone fans.

Specifications	50'' butterfly cone fan	50'' axial flow box fan	36'' axial flow box fan
Flow amount(m3/h)	51020	43170	20800
Size(LWH)(mm)	138013801360	13801380450	10001000450
Noise level(db)	≤65	≤65	≤64
Power(Kw)	1.1	1.1	0.4
Voltage(V)	380/220/others	380/220/others	380/220/others
Current(A)	2.8	2.8	1.25
Weight(Kg)	100	89	54

Air inlets:
-Manuel control: Operater will check the pressure of chicken house, control the winches by hand until meet requirements;
-Automatic control: The T616 environment controller is connected to one static pressure sensor, air inlet windows will be on/off automatically by pressure.
Chicken Poultry Farm Equipment for Broiler House in Philippines with Steel Structure House 3

Chicken Poultry Farm Equipment for Broiler House in Philippines with Steel Structure House 3

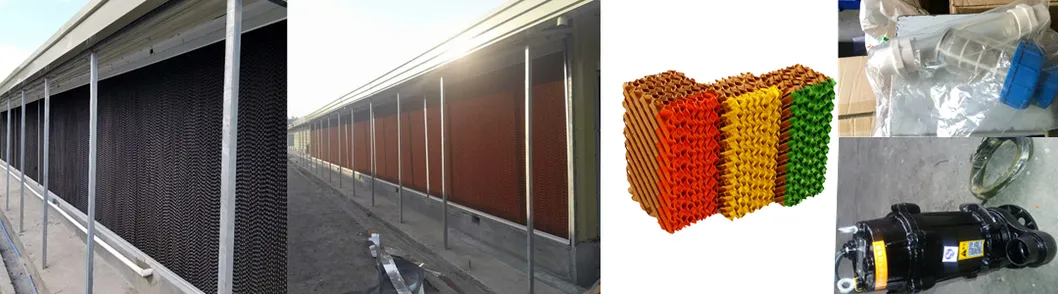

No.5: Cooling pad system
When the air goes through the pad, the heat will be taken down by the evaporation of water, so the air will be cooled before going into the shed.

Thickness	100mm, 150mm
Width	300mm, 600mm
Height(with frame)	1660mm, 1960mm, 2160mm
Height(without frame)	1500mm, 1800mm, 2000mm
Frame	Galvanized sheet frame or Aluminum alloy frame

Chicken Poultry Farm Equipment for Broiler House in Philippines with Steel Structure House 4

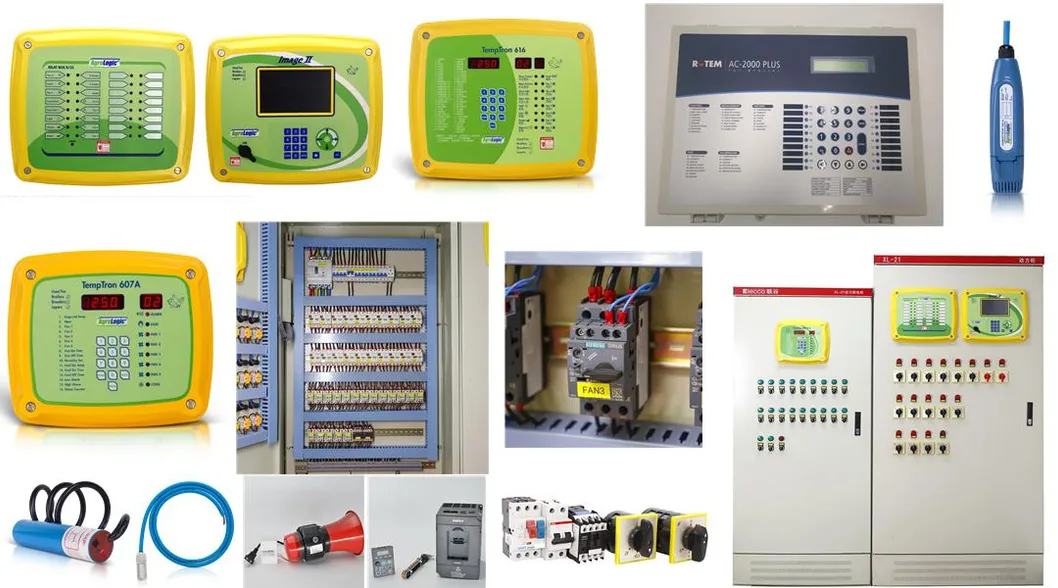

No.6: Environment control system
The system can control the temperature in chicken house by controlling ventilation fans, cooling pads, air inlets and heaters automatically, also control the water, feed and light.
a. Environment controller:
We have Israel imported controller and domestic brand controller for your choice, they have different functions and different prices.
b. Temperature sensor and humidity sensor
c. Control boxes
d. Light system and wire system
Chicken Poultry Farm Equipment for Broiler House in Philippines with Steel Structure House 5

Chicken Poultry Farm Equipment for Broiler House in Philippines with Steel Structure House 5

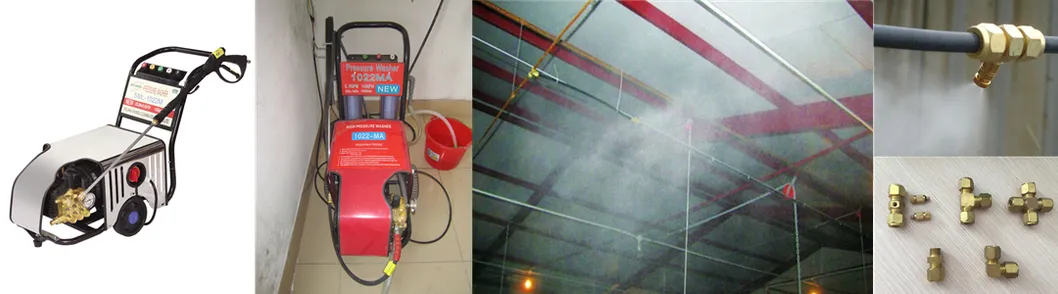

No.7: Fogging system
It's effective tool for cooling, damping, dedusting and disinfecting the house. It can reduce the temperature by 3~8°c within 3 minutes. The system including main engine with filters, cooper pipes, nylon pipes and nozzles.
Characteristics:
-Instant cooling but not wet.
-Large flow, high pressure, good atomization, and corrosion resistance.
-Increase the humidity to the preset range according to the requirements-60 to 70 percent of the maximum relative humidity.
-Effectively prevent the dust, reduce respiratory decrease of livestock and poultry.
-Disinfect with chickens.
Chicken Poultry Farm Equipment for Broiler House in Philippines with Steel Structure House 6

Chicken Poultry Farm Equipment for Broiler House in Philippines with Steel Structure House 6

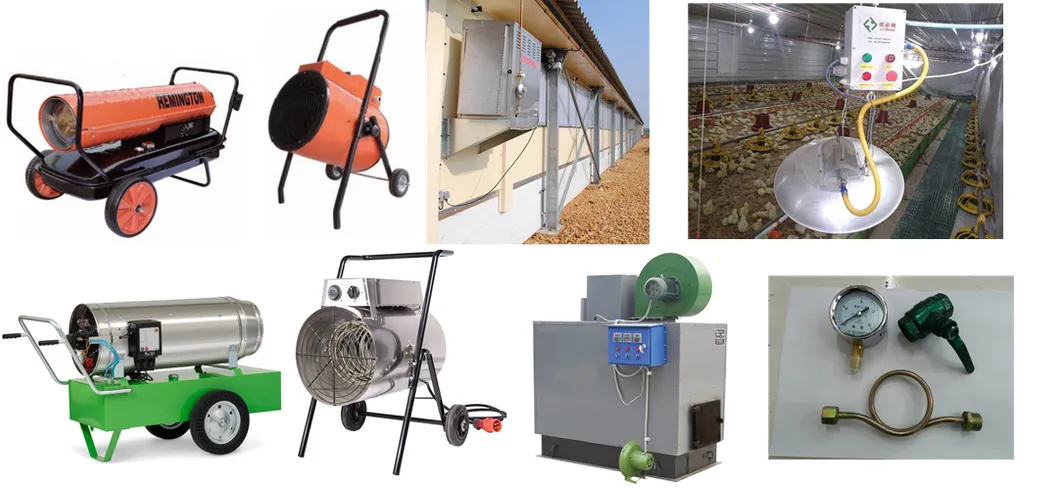

No.8: Heating system
Proper temperature is critical to chickens, especially day-old chicks, we have different kinds heaters for your choice, they fire coal, diesel, gas or use electricity, we also provide professional brood heating tools--gas brooders.
Chicken Poultry Farm Equipment for Broiler House in Philippines with Steel Structure House 7

Chicken Poultry Farm Equipment for Broiler House in Philippines with Steel Structure House 7

Chicken Poultry Farm Equipment for Broiler House in Philippines with Steel Structure House 8
CERTIFICATE

Q: You are manufacture factory or trading company?

A: We are manufacture factory can provide you with best quality and competitive price.

Q: How long can I get my equipment and house ?
A: In common case, delivery can be 30-45 days aftter deposit received

Q: How many chickens can I raise for 1 house?
A: We will calculate based on your local raising density and house size limit

Q: How can I get a quick quotation?
A: We will send you a question list to fill then we provide you a quick proposal offer based on your feedback
